TOSA Juracan Rotating Ring Stretch Wrapper
The TOSA Juracan is a high-performance rotating ring stretch wrapping machine designed for manufacturers requiring maximum productivity, exceptional wrapping consistency and low operating costs. Built for demanding production environments, the Juracan delivers fully automatic pallet wrapping with outputs of up to 160 pallets per hour whilst reducing stretch film consumption through advanced powered pre-stretch technology.
Available with either 500mm or 750mm stretch film rolls, or configured with twin film reels for higher productivity, the Juracan is suitable for fully automated packaging lines handling a wide variety of palletised products. Its intelligent control system, low-maintenance design and advanced film management capabilities make it an ideal solution for manufacturers looking to maximise efficiency and minimise downtime.
Key Benefits
- Fully automatic rotating ring stretch wrapping machine
- Production rates up to 160 pallets per hour
- Powered pre-stretch technology up to 400%
- Available with single or twin film reel configuration
- Strategic film positioning for improved load stability
- Intelligent production data monitoring
- Low-maintenance belt-driven ring system
- 7-inch colour touchscreen operator interface
- Suitable for complete end-of-line automation
- Manufactured by TOSA

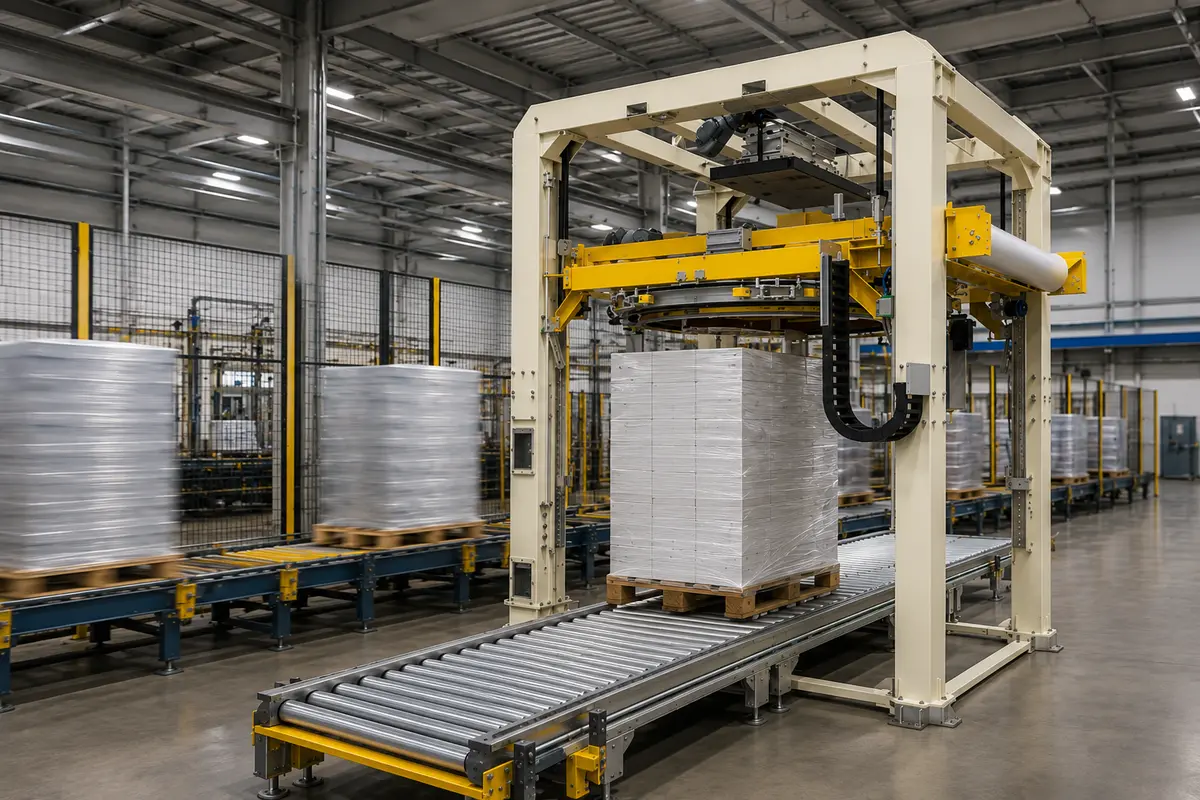

Production Performance
Designed for continuous operation, the TOSA Juracan provides exceptionally high throughput for manufacturers with demanding packaging requirements. Capable of wrapping up to 160 pallets per hour, the rotating ring design allows high wrapping speeds whilst maintaining consistent film application and excellent load containment.
The machine is particularly suited to automated production lines where reliability, packaging quality and operational efficiency are essential. Whether wrapping food products, building materials, paper, tissue or industrial goods, the Juracan delivers repeatable wrapping performance throughout every production shift.

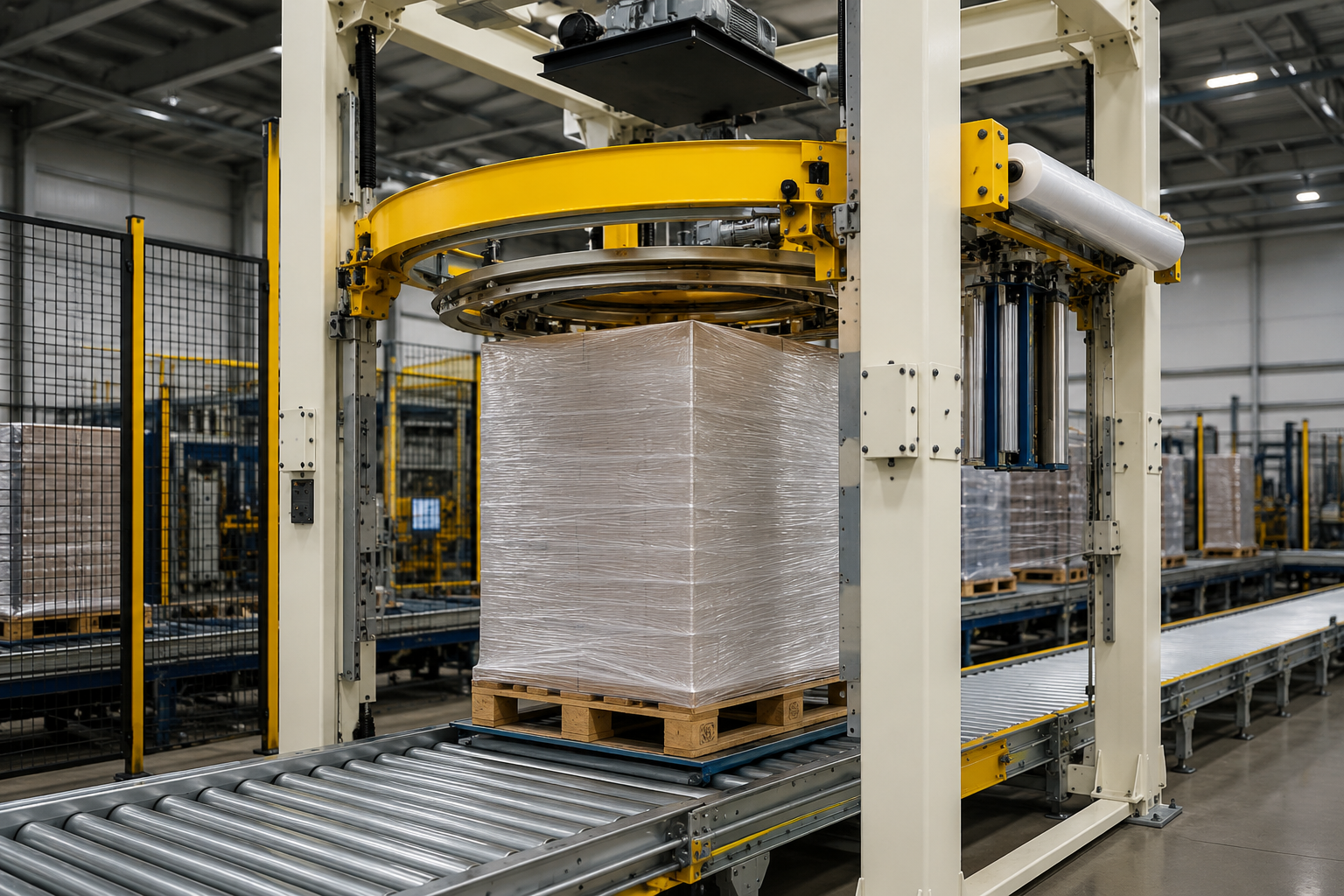

Intelligent Film Management
The TOSA Juracan incorporates advanced powered pre-stretch technology with ratios of up to 400%, helping manufacturers significantly reduce stretch film consumption without compromising load stability.
Intelligent wrapping programmes allow film tension, pre-stretch, spiral speed and reinforcement wraps to be adjusted for different areas of the pallet. Strategic film positioning ensures additional film is only applied where required, reducing material usage whilst improving pallet stability during storage and transport.

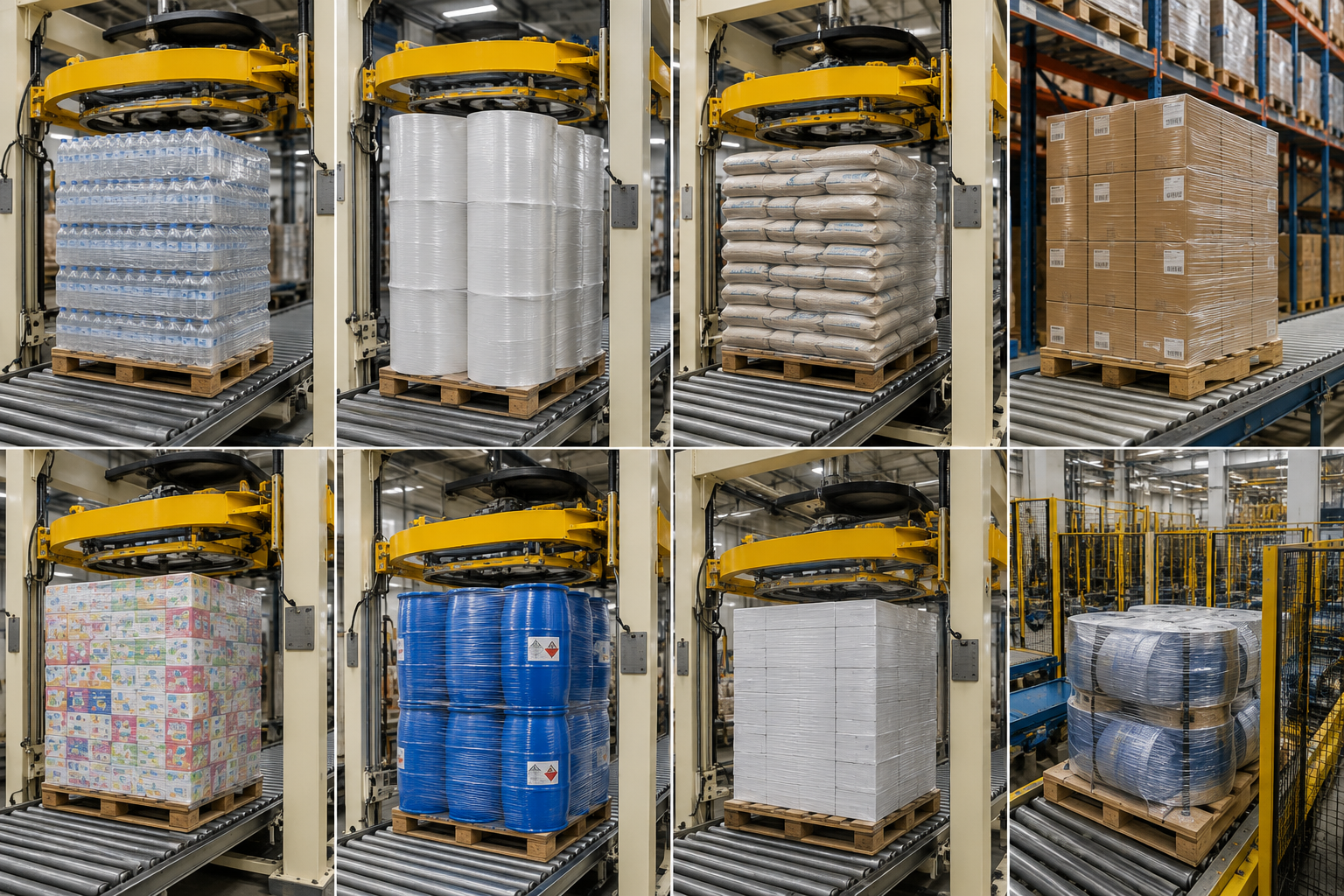

Typical Applications
The TOSA Juracan is suitable for high-volume manufacturing and distribution operations across a wide range of industries, including:
- Food and beverage manufacturing
- Paper and tissue production
- Building products
- FMCG
- Warehousing and logistics
- Chemicals
- Industrial manufacturing
The machine can be integrated into new or existing conveyor systems as part of a complete automated packaging line.
Technical Specification
| Specification | TOSA Juracan |
|---|---|
| Machine Type | Fully Automatic Rotating Ring Stretch Wrapper |
| Maximum Throughput | Up to 160 pallets per hour |
| Wrapping System | Rotating Ring |
| Film Roll Width | 500mm or 750mm |
| Film Configuration | Single or Twin Film Rolls |
| Powered Pre-Stretch | Up to 400% |
| Wrapping Programmes | Up to 20 programmable cycles |
| Operator Interface | 7-inch colour touchscreen HMI |
| Data Collection | USB and Ethernet production reporting |
| Film Positioning | Strategic reinforcement wrapping |
| Manufacturer | TOSA |

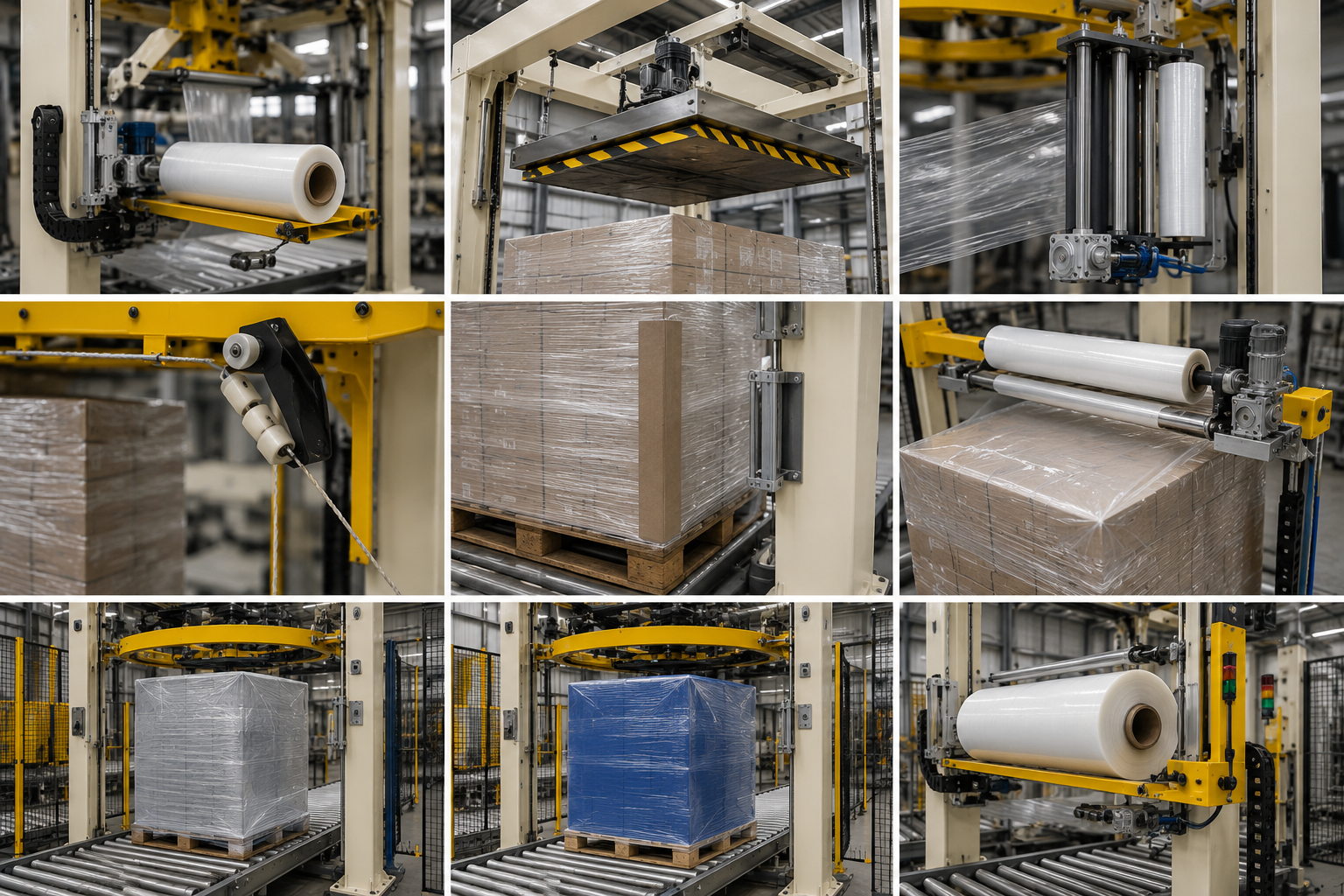

Optional Equipment
The TOSA Juracan can be configured with a comprehensive range of optional equipment to suit individual production requirements, including:
- Automatic stretch film roll change
- Powered top presser
- Variable powered pre-stretch
- Film roping
- Vertical corner post application
- Dust-proof top sheet application
- Waterproof wrapping systems
- Automatic top sheet roll change
These options allow the machine to be tailored for specific products, pallet configurations and production environments.
Frequently Asked Questions
The TOSA Juracan is capable of wrapping up to 160 pallets per hour, making it suitable for high-volume automated production environments.
Rotating ring technology allows high wrapping speeds whilst maintaining excellent load stability and consistent film application without rotating the pallet at excessive speeds.
Yes. The machine can be configured with either a single film roll or twin 500mm or 750mm film rolls depending on production requirements.
Strategic film positioning allows additional reinforcement wraps to be applied only where required, improving load stability whilst reducing unnecessary film consumption.
Optional equipment includes automatic film roll change, powered top pressers, film roping, corner post application systems and dust-proof or waterproof wrapping configurations.
Yes. Phoenix Handling Solutions provides installation, commissioning, servicing, preventative maintenance, operator training and spare parts support throughout the UK and Ireland.
