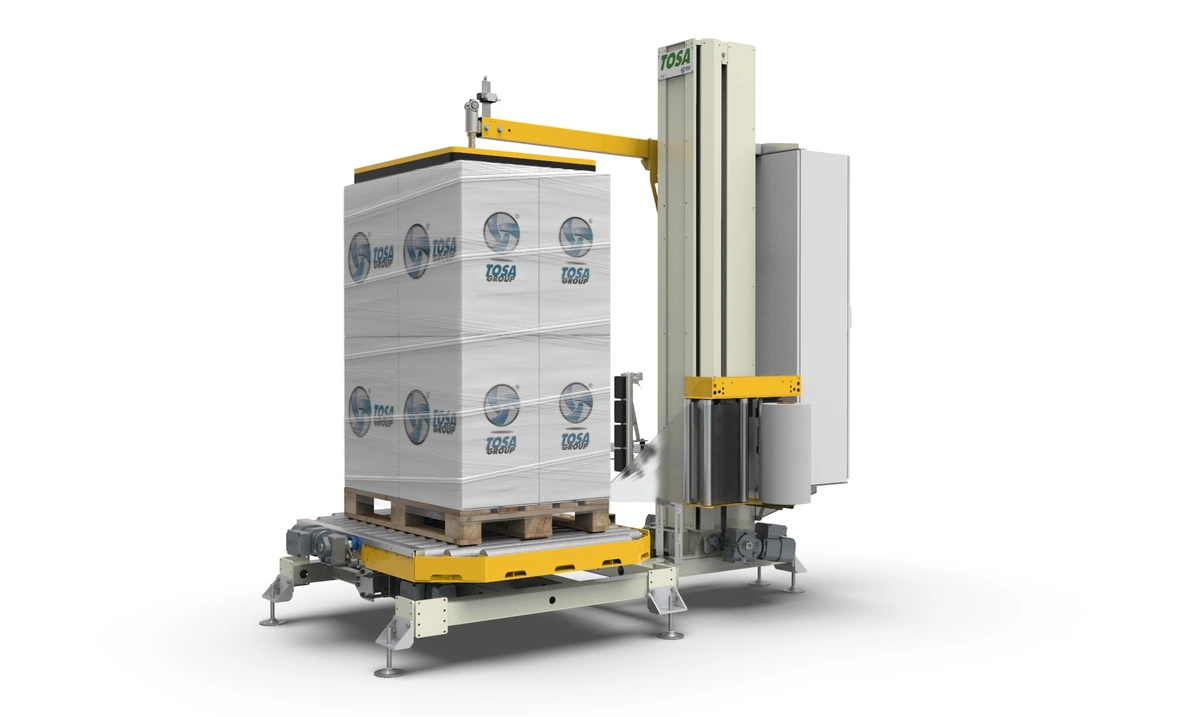

TOSA 090 Automatic Turntable Stretch Wrapper
The TOSA 090 is a fully automatic turntable stretch wrapping machine designed for manufacturers requiring reliable pallet wrapping with excellent film efficiency and consistent load stability.
Capable of wrapping up to 50 pallets per hour, the TOSA 090 combines powered pre-stretch technology with intuitive operator controls to reduce film consumption whilst delivering repeatable wrapping performance across a wide range of palletised products.
Suitable for integration into automated packaging lines or standalone installations, the machine provides a dependable solution for manufacturers looking to improve packaging efficiency and reduce operating costs.
Key Benefits
- Fully automatic pallet wrapping
- Production rates up to 50 pallets per hour
- Powered pre-stretch up to 350%
- Consistent load stability
- Low maintenance industrial design
- Easy-to-use touchscreen controls
- Suitable for automated packaging lines
- Manufactured by TOSA

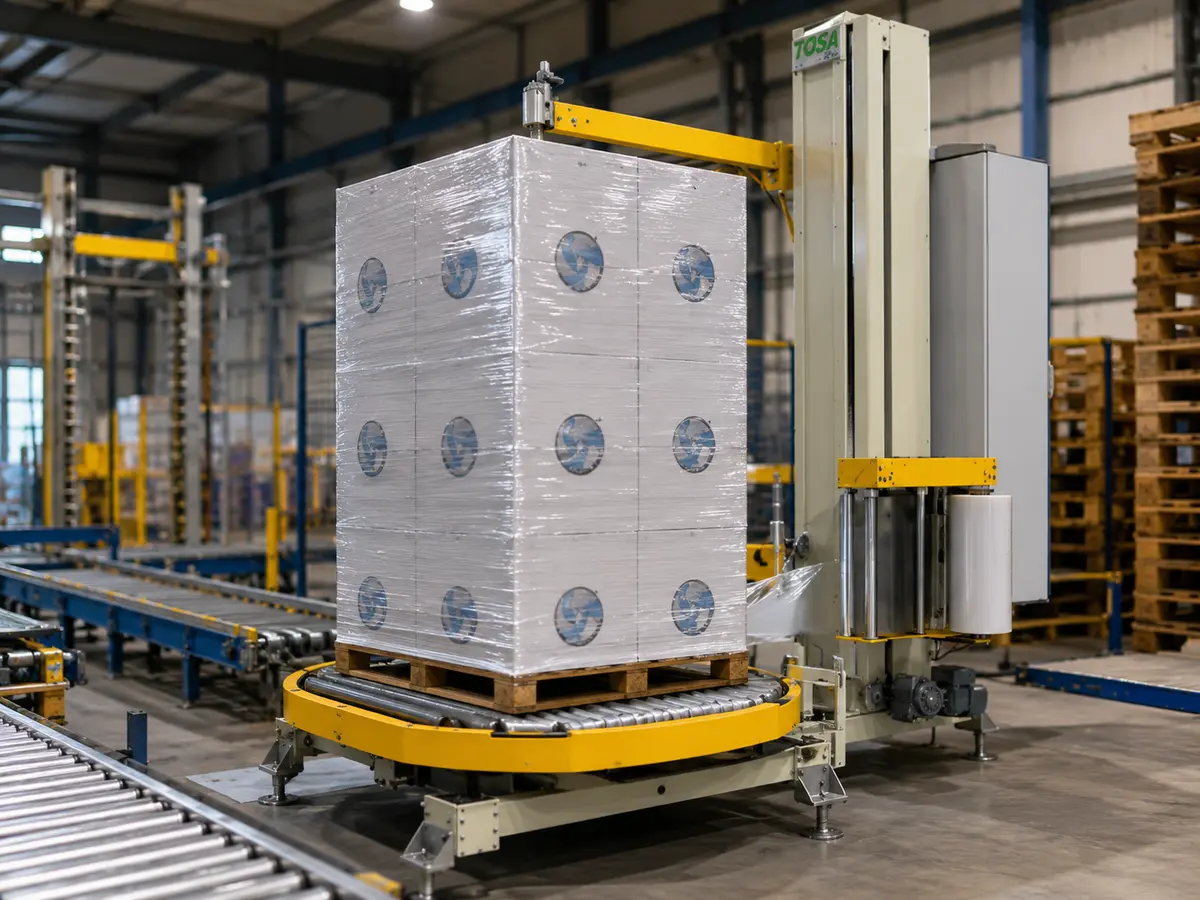

Production Performance
Designed for medium to high-volume manufacturing environments, the TOSA 090 provides reliable automatic pallet wrapping with outputs of up to 50 pallets per hour. The turntable design ensures consistent wrapping quality whilst maintaining stable load containment throughout the wrapping cycle.
The machine is suitable for manufacturers looking to automate pallet wrapping without the complexity of larger high-speed rotating arm or rotating ring systems.

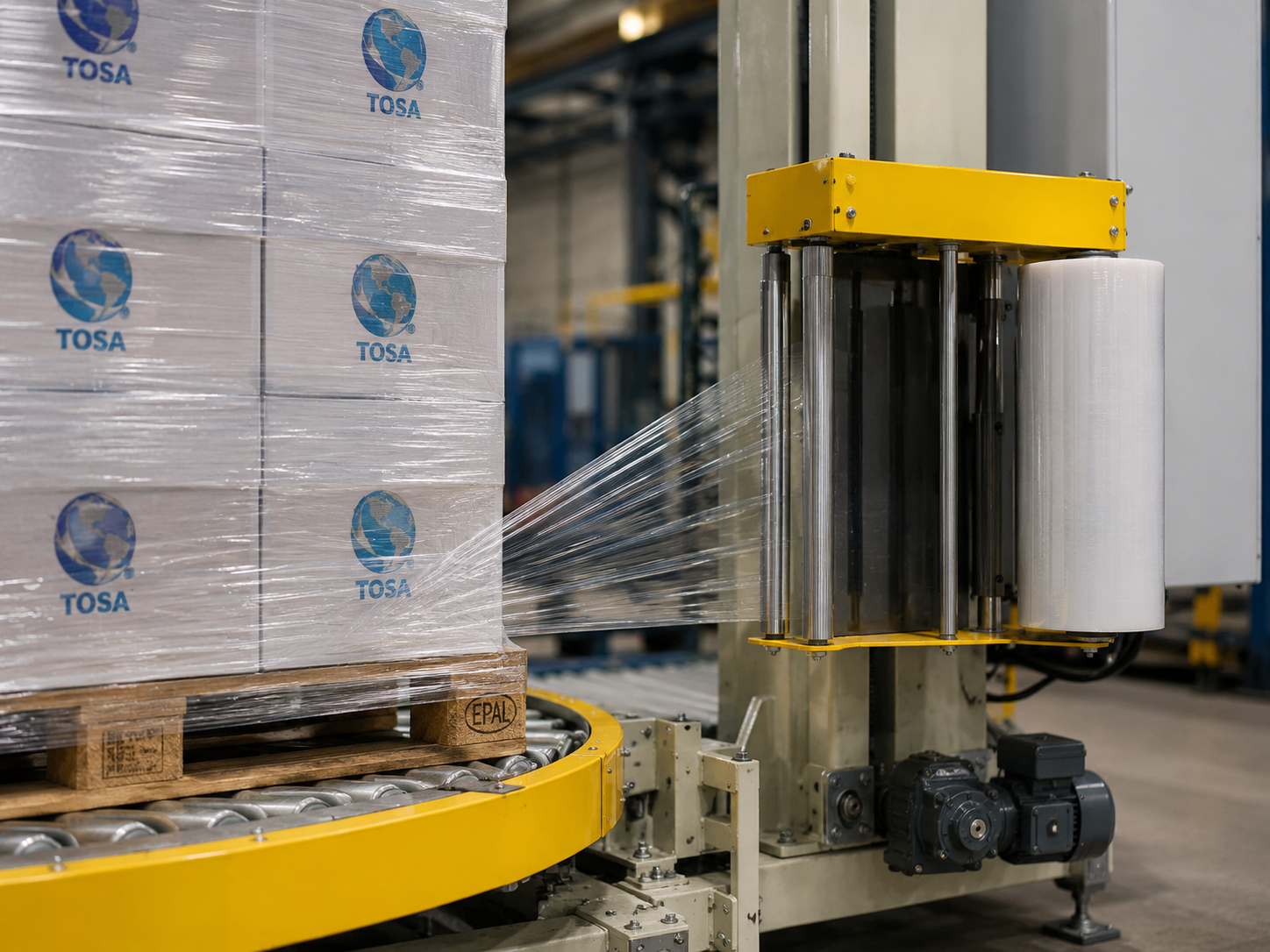

Film Saving Technology
The TOSA 090 incorporates powered pre-stretch technology to maximise stretch film efficiency whilst maintaining excellent load stability. By applying the optimum amount of film to each pallet, the system helps reduce film consumption, lower packaging costs and improve wrapping consistency across every production shift.

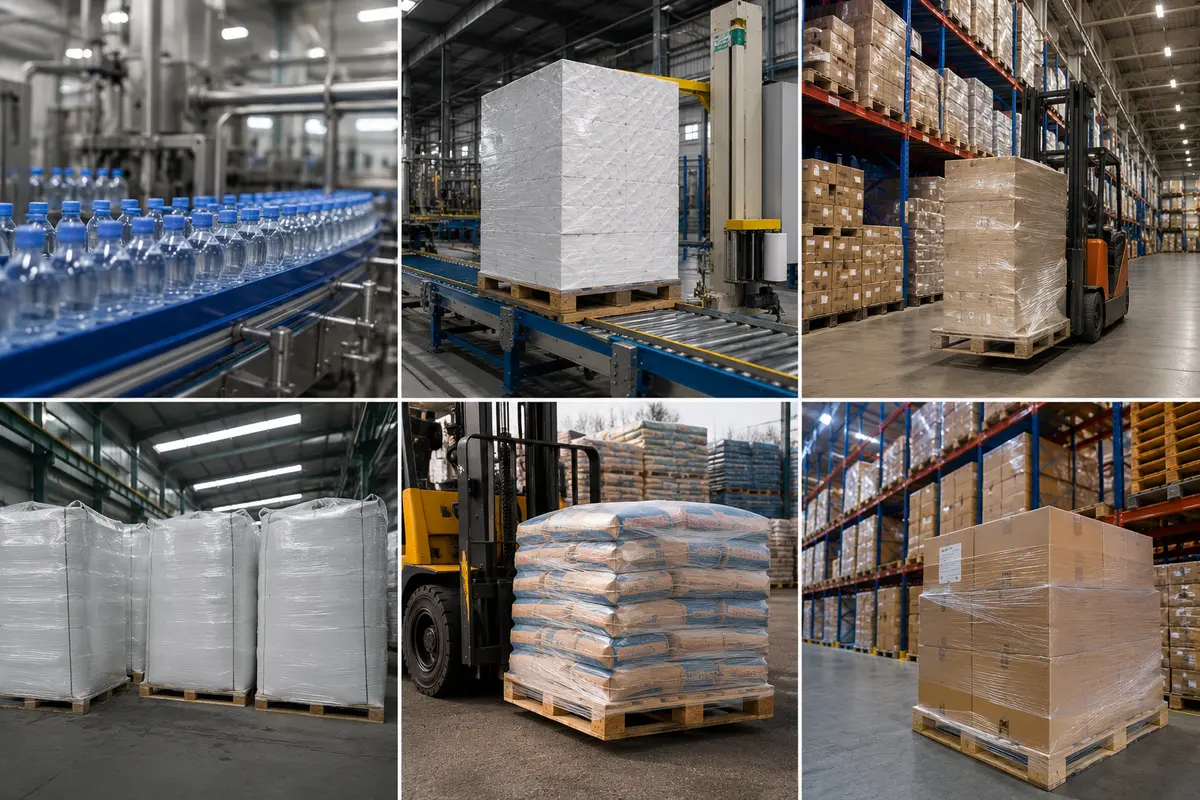

Typical Applications
The TOSA 090 is suitable for a wide range of palletised products across food and beverage manufacturing, paper and tissue production, logistics, warehousing, FMCG, building materials and general industrial applications.
The machine can be configured to suit different pallet dimensions and integrated into new or existing conveyor systems as part of a complete end-of-line packaging solution.
Technical Specification
| Specification | TOSA 090 |
|---|---|
| Machine Type | Fully Automatic Turntable Stretch Wrapping Machine |
| Wrapping System | Rotary Platform (Turntable) |
| Maximum Throughput | Up to 50 pallets per hour |
| Film Pre-Stretch | Powered pre-stretch system |
| Wrapping Cycles | Up to 20 programmable wrapping programmes |
| Operator Interface | 7-inch colour touchscreen |
| Machine Control | PLC controlled |
| Film Carriage | Powered pre-stretch carriage |
| Film Roll Diameter | Up to 300mm |
| Core Diameter | 76mm |
| Machine Integration | Suitable for automated conveyor systems |
| Optional Equipment | Top sheet dispenser, weighing, labelling, remote diagnostics and conveyor integration |
| Manufacturer | TOSA |

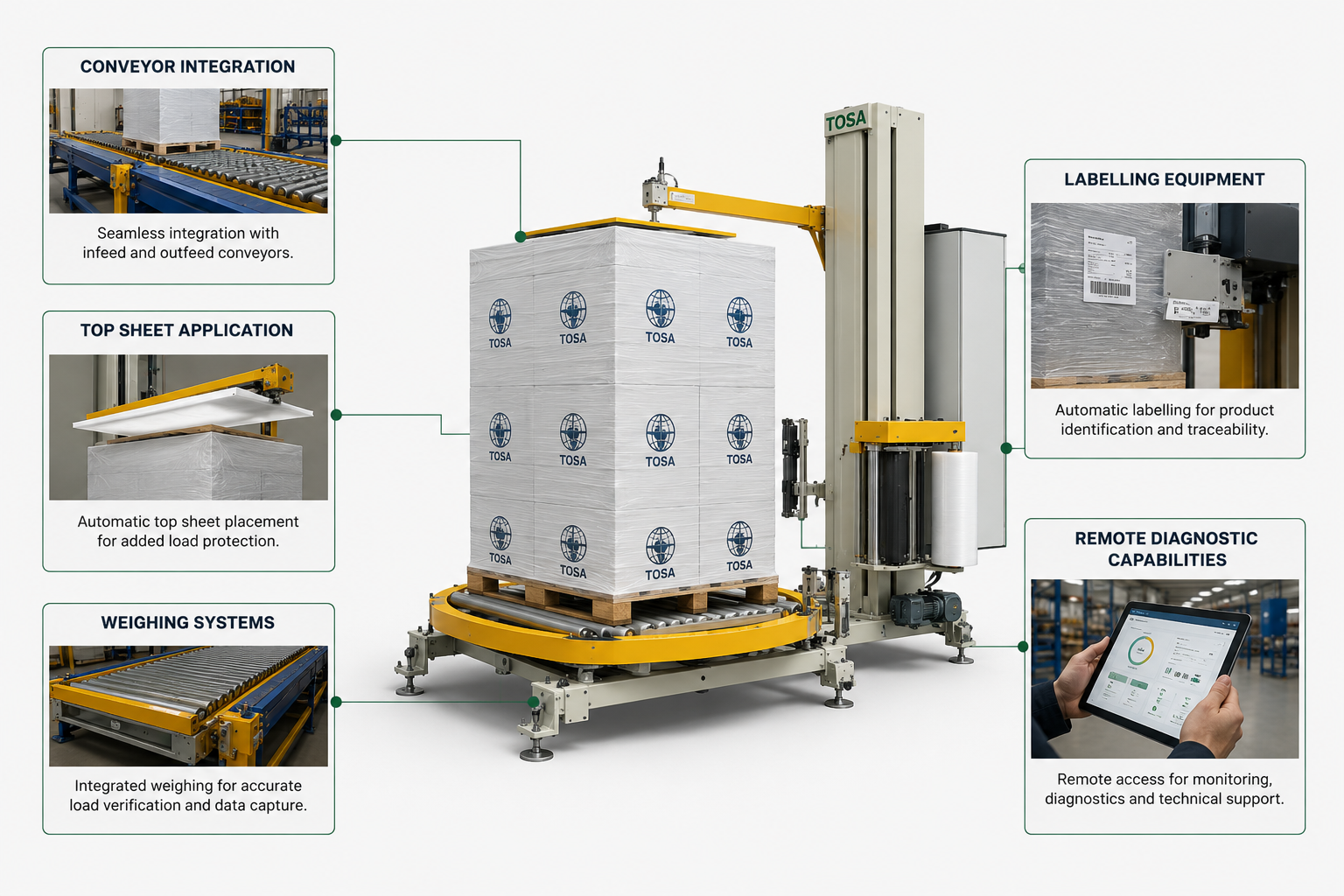

Optional Equipment
The TOSA 090 can be supplied with a range of optional equipment to suit individual production requirements, including conveyor integration, top sheet application, weighing systems, labelling equipment and remote diagnostic capabilities.
Frequently Asked Questions About the TOSA 090
The TOSA 090 is capable of wrapping up to 50 pallets per hour, making it suitable for medium to high-volume production environments.
The machine is suitable for a wide range of palletised products, including cartons, cases, trays, bagged products, food and beverage goods, paper and tissue products, building materials and general industrial loads.
Yes. The TOSA 090 can be installed as a standalone machine or integrated into new or existing conveyor systems as part of a complete end-of-line packaging solution.
The powered pre-stretch system applies the optimum amount of stretch film to each pallet, helping to reduce film usage whilst maintaining excellent load stability and packaging consistency.
The TOSA 090 can be supplied with optional equipment including conveyor integration, top sheet application, weighing systems, labelling equipment and remote diagnostic capabilities.
Yes. Phoenix Handling Solutions provides installation, commissioning, operator training, servicing, preventative maintenance and spare parts support for TOSA stretch wrapping machines throughout the UK and Ireland.
